Mô tả cơ bản:
Dao phay ngón EMM 2000L1 – Thương hiệu Echain được sử dụng cho gia công thép, thép không gỉ, thép hợp kim, thép carbon, và gang. EMM2000L có hai me cắt được sử dụng thông dụng cho phá thô vật liệu.

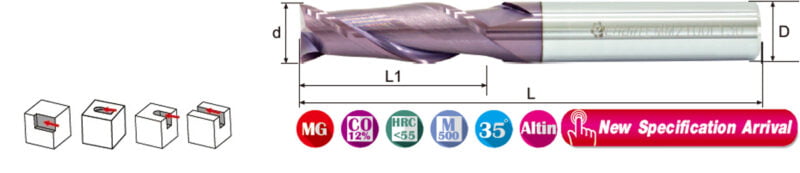

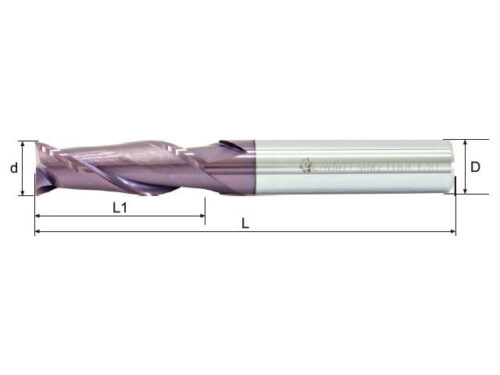

Bảng 1.1 Kích thước tiêu chuẩn Dao phay ngón EMM 2000L1
| Model No | Stock | Diameter (d) | Flute length (L1) | O.A.L. (L) | Shank Dia (D) |
|---|---|---|---|---|---|
| EMM2010L103 | 1.0 | 3 | 50 | 4 | |
| EMM2011L1033 | 1.1 | 3.3 | 50 | 4 | |
| EMM2012L1036 | 1.2 | 3.6 | 50 | 4 | |
| EMM2013L1039 | 1.3 | 3.9 | 50 | 4 | |
| EMM2014L1042 | 1.4 | 4.2 | 50 | 4 | |
| EMM2015L1045 | 1.5 | 4.5 | 50 | 4 | |
| EMM2016L1048 | 1.6 | 4.8 | 50 | 4 | |
| EMM2017L1051 | 1.7 | 5.1 | 50 | 4 | |
| EMM2018L1054 | 1.8 | 5.4 | 50 | 4 | |
| EMM2019L1057 | 1.9 | 5.7 | 50 | 4 | |
| EMM2020L106 | 2.0 | 6 | 50 | 4 | |
| EMM2020L106D6 | 2.0 | 6 | 50 | 6 | |
| EMM2021L1063 | 2.1 | 6.3 | 50 | 4 | |
| EMM2022L1066 | 2.1 | 6.6 | 50 | 4 | |
| EMM2023L1069 | 2.3 | 6.9 | 50 | 4 | |
| EMM2024L1072 | 2.4 | 7.2 | 50 | 4 | |
| EMM2025L1075 | 2.5 | 7.5 | 50 | 4 | |
| EMM2026L1078 | 2.6 | 7.8 | 50 | 4 | |
| EMM2027L1081 | 2.7 | 8.1 | 50 | 4 | |
| EMM2028L1084 | 2.8 | 8.4 | 50 | 4 | |
| EMM2029L1087 | 2.9 | 8.7 | 50 | 4 | |
| EMM2030L109 | 3 | 9 | 50 | 4 | |
| EMM2030L109D6 | 3 | 9 | 50 | 6 | |
| EMM2031L1093 | 3.1 | 9.3 | 50 | 4 | |
| EMM2032L1096 | 3.2 | 9.6 | 50 | 4 | |
| EMM2033L1099 | 3.3 | 9.9 | 50 | 4 | |
| EMM2034L1102 | 3.4 | 10.2 | 50 | 4 | |
| EMM2035L1105 | 3.5 | 10.5 | 50 | 4 |
| Model No | Stock | Diameter (d) | Flute length (L1) | O.A.L. (L) | Shank Dia (D) |
|---|---|---|---|---|---|
| EMM2036L1108 | 3.6 | 10.8 | 50 | 4 | |
| EMM2037L1111 | 3.7 | 11.1 | 50 | 4 | |
| EMM2038L1114 | 3.8 | 11.4 | 50 | 4 | |
| EMM2039L1117 | 3.9 | 11.7 | 50 | 4 | |
| EMM2040L112 | 4 | 12 | 50 | 4 | |
| EMM2040L112D6 | 4 | 12 | 50 | 6 | |
| EMM2041L1123 | 4.1 | 12.3 | 50 | 6 | |
| EMM2042L1126 | 4.2 | 12.6 | 50 | 6 | |
| EMM2043L1129 | 4.3 | 12.9 | 50 | 6 | |
| EMM2044L1132 | 4.4 | 13.2 | 50 | 6 | |
| EMM2045L1135 | 4.5 | 13.5 | 50 | 6 | |
| EMM2046L1138 | 4.6 | 13.8 | 50 | 6 | |
| EMM2047L1141 | 4.7 | 14.1 | 50 | 6 | |
| EMM2048L1144 | 4.8 | 14.4 | 50 | 6 | |
| EMM2049L1147 | 4.9 | 14.7 | 50 | 6 | |
| EMM2050L115 | 5.0 | 15 | 50 | 6 | |
| EMM2051L1153 | 5.1 | 15.3 | 50 | 6 | |
| EMM2052L1156 | 5.2 | 15.6 | 50 | 6 | |
| EMM2053L1159 | 5.3 | 15.9 | 50 | 6 | |
| EMM2054L1162 | 5.4 | 16.2 | 50 | 6 | |
| EMM2055L1165 | 5.5 | 16.5 | 50 | 6 | |
| EMM2056L1168 | 5.6 | 16.8 | 50 | 6 | |
| EMM2057L1171 | 5.7 | 17.1 | 50 | 6 | |
| EMM2058L1174 | 5.8 | 17.4 | 50 | 6 | |
| EMM2059L1177 | 5.9 | 17.7 | 50 | 6 | |
| EMM2060L118 | 6.0 | 18.0 | 50 | 6 | |
| EMM2061L1183 | 6.1 | 18.3 | 60 | 8 | |
| EMM2062L1186 | 6.2 | 18.6 | 60 | 8 | |
| EMM2063L1189 | 6.3 | 18.9 | 60 | 8 | |
| EMM2064L1192 | 6.4 | 19.2 | 60 | 8 | |
| EMM2065L1195 | 6.5 | 19.5 | 60 | 8 | |
| EMM2066L1198 | 6.6 | 19.8 | 60 | 8 | |
| EMM2067L1201 | 6.7 | 20.1 | 60 | 8 | |
| EMM2068L1204 | 6.8 | 20.4 | 60 | 8 | |
| EMM2069L1207 | 6.9 | 20.7 | 60 | 8 | |
| EMM2070L121 | 7 | 21 | 60 | 8 |
| Model No | Stock | Diameter (d) | Flute length (L1) | O.A.L. (L) | Shank Dia (D) |
|---|---|---|---|---|---|
| MM2071L1213 | 7.1 | 21.3 | 60 | 8 | |
| MM2072L1216 | 7.2 | 21.6 | 60 | 8 | |
| EMM2073L1219 | 7.3 | 21.9 | 60 | 8 | |
| EMM2074L1222 | 7.4 | 22.2 | 60 | 8 | |
| EMM2075L1225 | 7.5 | 22.5 | 60 | 8 | |
| EMM2076L1228 | 7.6 | 22.8 | 60 | 8 | |
| EMM2077L1231 | 7.7 | 23.1 | 60 | 8 | |
| EMM2078L1234 | 7.8 | 23.4 | 60 | 8 | |
| EMM2079L1237 | 7.9 | 23.7 | 60 | 8 | |
| EMM2080L124 | 8 | 24 | 60 | 8 | |
| EMM2081L1243 | 8.1 | 24.3 | 75 | 10 | |
| EMM2082L1246 | 8.2 | 24.6 | 75 | 10 | |
| EMM2083L1249 | 8.3 | 24.9 | 75 | 10 | |
| EMM2084L1252 | 8.4 | 25.2 | 75 | 10 | |
| EMM2085L1255 | 8.5 | 25.5 | 75 | 10 | |
| MM2086L1258 | 8.6 | 25.8 | 75 | 10 | |
| MM2087L1261 | 8.7 | 26.1 | 75 | 10 | |
| EMM2088L1264 | 8.8 | 26.4 | 75 | 10 | |
| EMM2089L1267 | 8.9 | 26.7 | 75 | 10 | |
| EMM2090L127 | 9 | 27 | 75 | 10 | |
| EMM2091L1273 | 9.1 | 27.3 | 75 | 10 | |
| EMM2092L1276 | 9.2 | 27.6 | 75 | 10 | |
| EMM2093L1279 | 9.3 | 27.9 | 75 | 10 | |
| EMM2094L1282 | 9.4 | 28.2 | 75 | 10 | |
| EMM2095L1285 | 9.5 | 28.5 | 75 | 10 | |
| MM2096L1288 | 9.6 | 28.8 | 75 | 10 | |
| EMM2097L1291 | 9.7 | 29.1 | 75 | 10 | |
| EMM2098L1294 | 9.8 | 29.4 | 75 | 10 | |
| MM2099L1297 | 9.9 | 29.7 | 75 | 10 | |
| EMM2100L130 | 10 | 30 | 75 | 10 | |
| MM2101L1303 | 10.1 | 30.3 | 75 | 12 | |
| EMM2102L1306 | 10.2 | 30.6 | 75 | 12 | |
| EMM2103L1309 | 10.3 | 30.9 | 75 | 12 | |
| EMM2104L1312 | 10.4 | 31.2 | 75 | 12 | |
| EMM2105L1315 | 10.5 | 31.5 | 75 | 12 | |
| EMM2106L1318 | 10.6 | 31.8 | 75 | 12 |
| Model No | Stock | Diameter (d) | Flute length (L1) | O.A.L. (L) | Shank Dia (D) |
|---|---|---|---|---|---|
| EMM2107L1321 | 10.7 | 32.1 | 75 | 12 | |
| EMM2108L1324 | 10.8 | 32.4 | 75 | 12 | |
| EMM2109L1327 | 10.9 | 32.7 | 75 | 12 | |
| EMM2110L133 | 11 | 33 | 75 | 12 | |
| EMM2111L1333 | 11.1 | 33.3 | 75 | 12 | |
| EMM2112L1336 | 11.2 | 33.6 | 75 | 12 | |
| EMM2113L1339 | 11.3 | 33.9 | 75 | 12 | |
| EMM2114L1342 | 11.4 | 34.2 | 75 | 12 | |
| EMM2115L1345 | 11.5 | 34.5 | 75 | 12 | |
| EMM2116L1348 | 11.6 | 34.8 | 75 | 12 | |
| EMM2117L1351 | 11.7 | 35.1 | 75 | 12 | |
| EMM2118L1354 | 4.6 | 13.8 | 50 | 6 | |
| EMM2119L1357 | 4.7 | 14.1 | 50 | 6 | |
| EMM2120L136 | 4.8 | 14.4 | 50 | 6 |

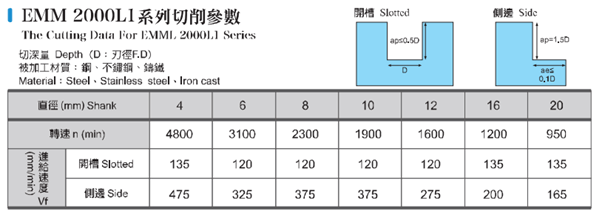

Bảng 1.2 Tốc độ cắt cho EMM2000L
